The material can be supplied via a flow cup or pressurized (pump, material pressure tank) directly via the connection in the handle. The material quantity regulation via the needle stroke setting with a lock nut enables stepless, fine dosing. The XLINE air nozzle system offers the following advantages:
- Optimization of the air nozzle using numerical flow simulation
- Material change to anodised aluminium, available in stainless steel on request
- Automated 100% control of the air nozzles integrated in the production process
- Functional improvement of the air nozzles
- Improved handling of the air nozzles
- Color coding of the spraying process
- Very fine atomization
- Wide homogeneous spray pattern
- Easy adjustability of the spray pattern
- High transfer efficiency 160-3429 | © Krautzberger GmbH | 03.2020
Special features
- Handle made of light, solvent-resistant and ergonomically shaped plastic. Removable head section made of aluminium, also made of stainless steel on request

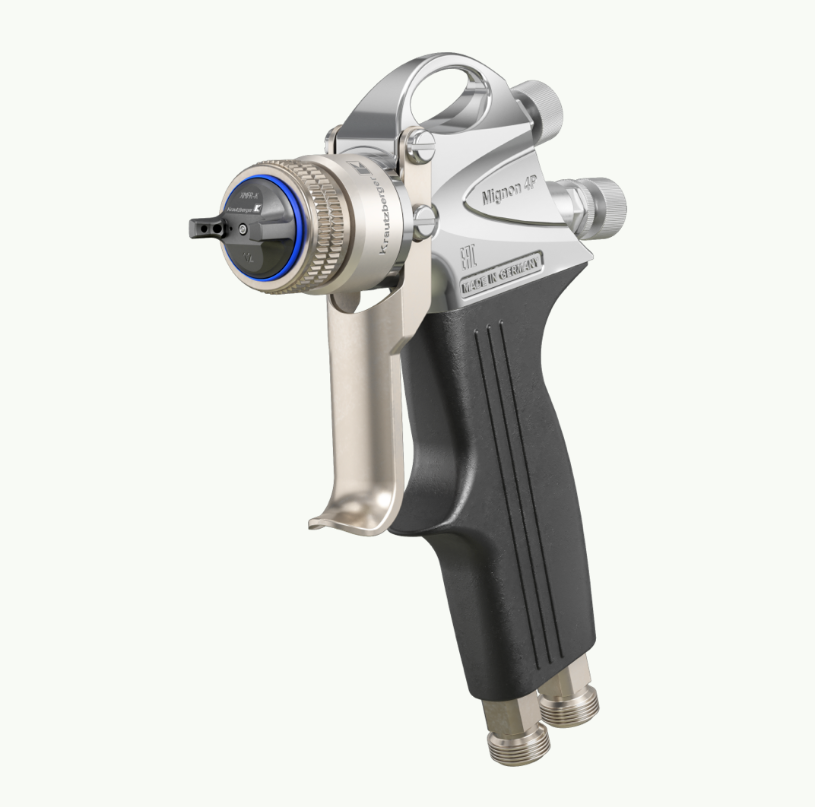

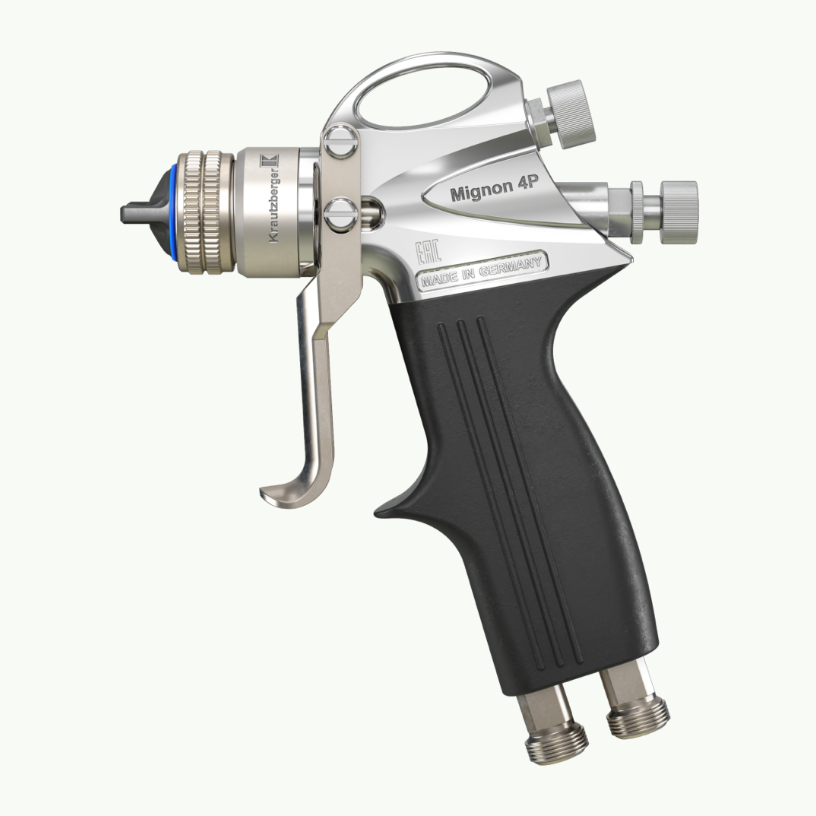

- Material feed either in the handle (Mignon 4P) or via flow cup (Mignon 4S)
- better handling and fatigue-free work
- Plastic and aluminum cups available
- XLINE nozzle system, 100% control of the air nozzles (spray pattern)
