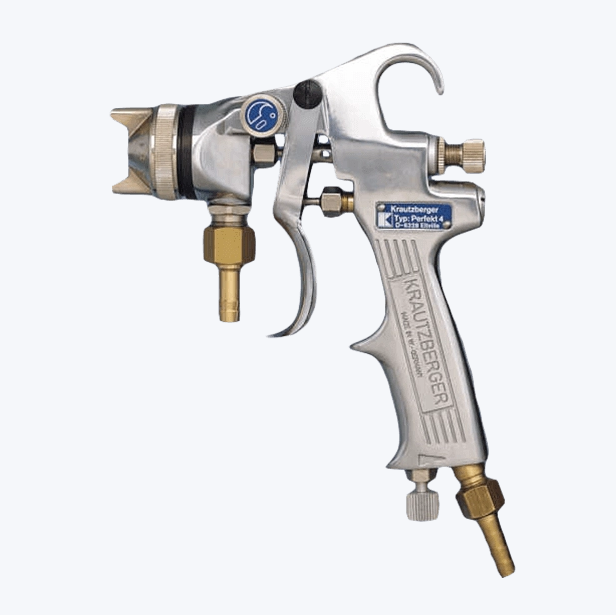

Perfekt 4

The modern standard spray gun Perfekt 4 is suitable for a wide range of applications. The spray gun is equipped with a fine-tune air regulator as standard to allow precision metering of the air volume. The built-in jet regulating valve allows continuous adjustment from an extremely fine circular jet to a full flat jet, and this means that the jet width can be adjusted to suit different workpieces during the spraying process. The handy, lightweight design ensures fatigue-free operation. The main element is made of a corrosion-resistant light metal alloy and has a polished surface to facilitate the removal of material remains. The material nozzles and needles are made of stainless steel as standard but are also available in tungsten carbide, plastic etc. for special applications.

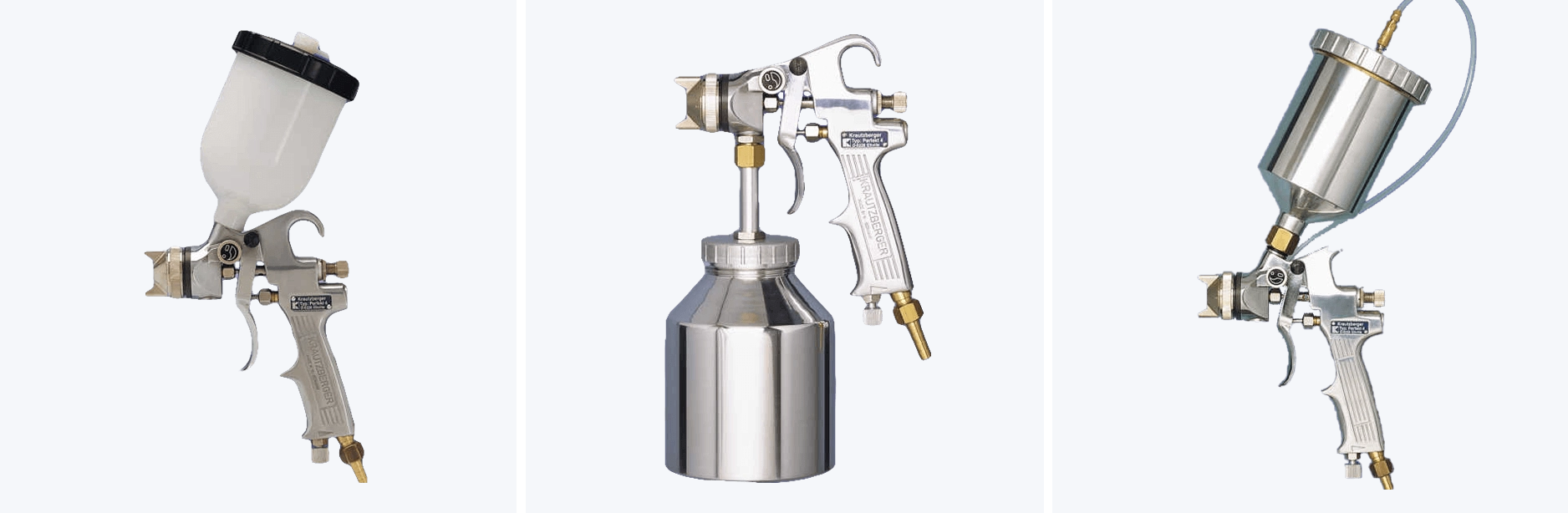

There are several options for material feed. Guns are available with material connection hose nozzles or with a range of gravity cups. There is also a wide selection of nozzles and needles of various sizes. The spray gun can naturally also be used in combination with our material feed containers, diaphragm pumps and regulators.

Parts in contact with the coating substance

The parts of the spray gun that come into contact with the coating material are made of aluminium (main element) and stainless steel (material needle and nozzle) as well as brass and plastic (gaskets); the gravity cups are made of aluminium, copper or plastic.

Special accessories

Nozzle extensions: these are particularly suitable for use when coating cavities (e.g. pipes, canisters, tins or other containers). In many cases, the length and shape of the nozzle extension can be adapted to suit special customer requirements. Ready-made nozzle extensions are also available.
