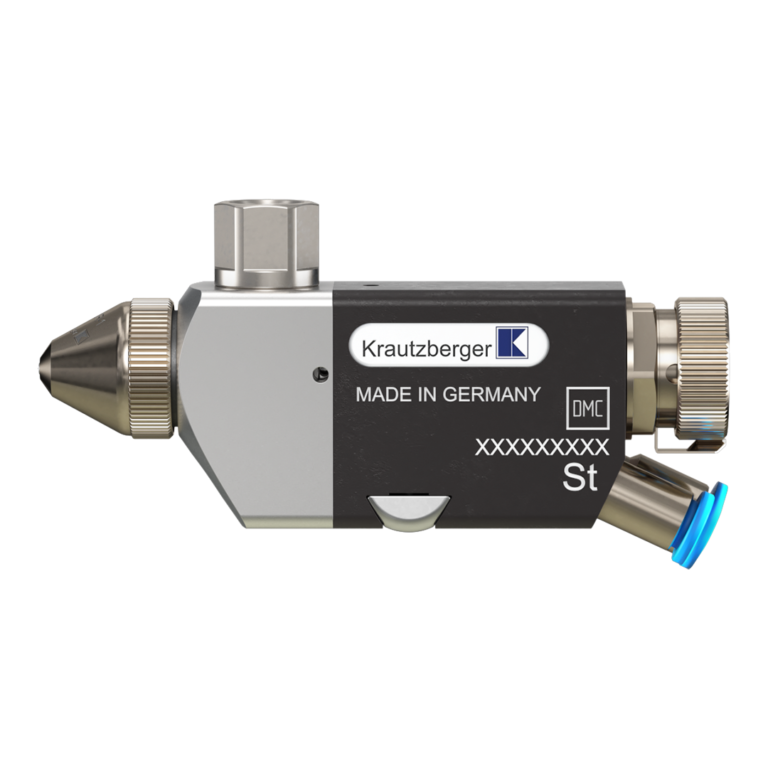

The new generation of “micro spraying” – the automatic spray gun Mikro XS. Thanks to an innovative pre-air control, a significantly reduced needle diameter and a 60% higher air output, the Mikro XS achieves the highest possible switching performance and an almost perfect spray pattern. Due to a head part that can be changed quickly, including sealing packing, the Mikro XS enables quick maintenance and offers a high degree of user-friendliness. Through our manufacturing and testing procedures, we integrate a 100% control of our XLINE air nozzles into our process. As a result, the Mikro XS offers high precision and reproducibility in fully automated spraying processes.
Advantages:
New pre-air and post-air control *, which is decoupled from the needle control, enables the highest switching performance and an almost perfect spray pattern
Reduced needle diameter: 2mm diameter, 60% less mass results in higher switching dynamics
Equipped with the XLINE nozzle system, each nozzle is 100% tested for function and spray pattern in the production process
60% higher air output possible, so that highly viscous media can also be atomized
Fastening via dovetail guide, precise and reproducible positioning
The head part and packing seal can each be removed with a screw, quick maintenance is possible, the main body remains in the system
Maintenance friendly
Long service life
Very compact design
Light weight
Circulation version available
Technical information:
Dimensions: height: 30mm without connectors, 46.6mm with connectors, length: 87.3mm, width without retaining bolts: 19.8mm, width with retaining bolts: 80.9mm
Connections: Material connection: 1/8" IT + 1/8" AG, control air connection: M5 IT, atomizing air: M5 IT
Weight: Stainless steel version: approx. 160g without retaining bolt, approx. 235g with retaining bolt
Working pressures: control air pressure min./max.: 5 bar / 8 bar, air connection max.: 6 bar, material connection max.: 12bar
Switching frequency: max. 30Hz (depending on the solenoid valve and the length of the control line)
